Features & Specifications:

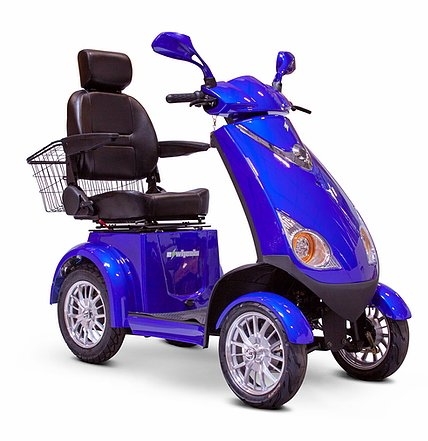

• Model EW-72
• Weight Capacity: 500Lbs.
• Speed: Up to 15mph Distance: 43 miles per charge (distance varies on terrain,
• riders weight, road surface, etc.)
• Front Seat: Type Adjustable Folding Captains chair with backrest
• Front seat: Size 18½“x 18½“x 30” (LxWxH)
• Front Seat: 26½ "from Ground"
• Carton Size: Shipped Fully assembled on Pallet – 63”x 36”x 54” (LxWxH)
• Basket Size: 10”x20”x12” (LxWxH)
• Steering Height: 46” from Ground
• Turning Radius: 92”
• Power: Electric
• Watts: 700 Watt
• Motor Type: Transaxle differential brushless
• Amps: 20 AH
• Volts: 48 Volts
• Dimensions: 56” x 27” x 52”
• Seat folded down 46”
• Floor Clearance: 6”
• Batteries: (4) Sealed Lead Acid Maintenance Free
• Forward/Reverse switch: Yes
• High/ Low Speed switch: Adjustable Speed Knob / Rheo-Stat
• Front tire size: 14” tire type: 90/70-10 Tubeless
• Rear tire size: 16” tire type: 3.0 – 10 Tubeless
• Charger: 48-volt Smart Charger included
• Throttle Type: Variable Speed Control – Twist Throttle
• Key Start: Yes
• Braking System: Front and Rear drum brakes with Electronic Braking (EBS)
• Drive System: 700 Watt Brushless Motor
• Headlight: 12v LED Lights
• Rear lights: 12v Bulb
• Carton Size: Shipped Fully assembled on Pallet – 63”x 36”x 54” (LxWxH)
• Scooter Weight: 257lbs with batteries
• Battery Indicator: Yes
• Front: Front Frame Suspension Bars
• Rear: Rear Shock Absorbers
• Reflectors: N/A
• Warranty: Limited – 3 Year Warranty
