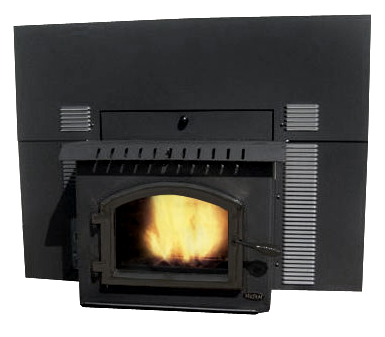

High Quality MagnuM Winchester Fireplace Insert - WIN-ACI

The Winchester has a compact design to fit a variety of Fireplace sizes yet delivers a powerful heating punch; a look that fits well with all varieties of décor, from country to contemporary. The fire will captivate you for days through the large viewing area of the arched door and a burn time of up to 56 hours on a single hopper capacity of up to 68 pounds of corn fuel. The Winchester is also available as a free standing cabinet style or leg unit.
The Winchester has also been equipped with an enhanced heat exchanger with a wrap around shell for increased heat efficiency, and a futuristic advanced control board with on-board diagnostics.
ORDER ONLINE NOW OR
CALL 1-866-606-3991
Features & Specifications:
- Fireplace Insert Model WIN-ACI
- Width 23.5"
- Height 21.5"
- Depth 15 1/2" behind Shroud" 12" in front of Shroud
- Weight 280 lbs.
- B.T.U. output: 10,000-45,000*
- Fuel Storage Capacity: Up to 50 lbs
- Burn Time: Up to 45 hrs
- Emissions: 0.69 GM/Hr with wood pellets
- EPA Status: Exempt
- Versatility.
- The most custom options in the industry!
- True corn, biomass and agri-fuel burning.
- Large fire viewing area.
- Environmentally friendly!
- Supports local farmers and communities.
- Saves you money even when the price of corn fluctuates
- Warranty information: MagnuM Winchester model WIN-ACI Fireplace Insert – 5-year warranty on structural components, 1-year warranty on electrical components.
ORDER ONLINE NOW OR
CALL 1-866-606-3991
Maintenance
- Daily: Clean top heat exchangers, empty ash pan if needed, fill fuel hopper, clean firepot system
- Daily: Open combustion air intake wide open for 5 minutes, then reset slide to original position
- Weekly: Clean fly ash behind all clean out slides
- Weekly: Clean lip above brick board, vacuum out firebox
- Weekly: After glass cools wipe with damp cloth to remove build-up of fly ash
- Monthly: Remove firebox and check that the air holes are all open
- Monthly: Vacuum out hopper, check gaskets for leakage, vacuum off electrical motors
- Monthly: Clean exhaust pipes if needed, inspect connections, vacuum inside cabinet
- We recommend Love-Less Ash vacs for ash removal.
Spring Cleaning
- Yearly: Empty hopper of all fuel, vacuum out hopper, oil lightly
- Yearly: Spray chain with light oil
- Yearly: Vacuum all motors and inside of cabinet, treat any rusted areas
- Yearly: Inspect brick board and all gaskets, connections and door latches
- Yearly: Remove brick board and spray light oil on inside of stove
