Brand New Go Kart Kit
with 6" Aluminum Wheels
This Go Kart Kit with 6" Aluminum Wheels has everything you need to construct a go-kart except the engine and clutch! Includes wheel halves, bucket seat, seat cover, chain, steering shaft and much more. Every single Unit comes with a warranty that is fully backed leaving you with NO RISK involved!
ORDER ONLINE NOW OR
CALL 1-866-606-3991
Click here to view our complete line of Kits
ORDER ONLINE NOW OR
CALL 1-866-606-3991
*Engine and Clutch NOT INCLUDED*ORDER ONLINE NOW OR
CALL 1-866-606-3991

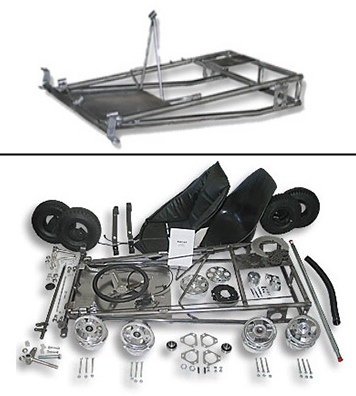

This sturdy Kart Kit is compiled from the quality components, double tube construction, high quality unit is jig-welded and made of 1" OD x .083" wall steel tubing. Comes complete with steering hoop assembly, engine mounting plate, spindle brackets, steering shaft bushing, pedal bushings, live-axle bearing hangers and control rod anchors. Well designed and rugged, the frame weighs just 31 lbs.
Assembly instructions and parts lists for each kit are included. We do not supply engines... and therefore we do not preselect a clutch.
ORDER ONLINE NOW OR
CALL 1-866-606-3991

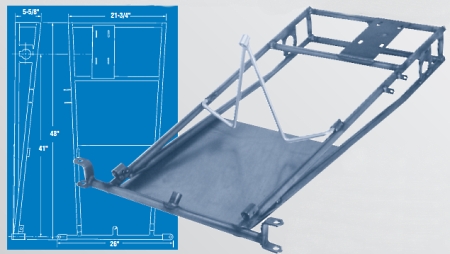

 *Engine and Clutch NOT INCLUDED*Frame Specifications:- Jig Welded and made of 1" OD x .083" Wall Steel Tubing
- Comes Complete with Steering Hoop Assembly, Engine Mounting Plate, Spindle Brackets, Steering Shaft Bushing, Pedal Bushings, Bearing Hangers & Control Rod Anchors.
- Frame weight: 31 lbs
Dimensions:- Overall Length: 50"
- Ground Clearance: 4"
- Length (Tire to Tire): 41"
- Back of Seat to Pedals: 28"
ORDER ONLINE NOW OR
CALL 1-866-606-3991
 Click here to view our complete line of Kits
ORDER ONLINE NOW OR
CALL 1-866-606-3991
ORDER ONLINE NOW OR
CALL 1-866-606-3991

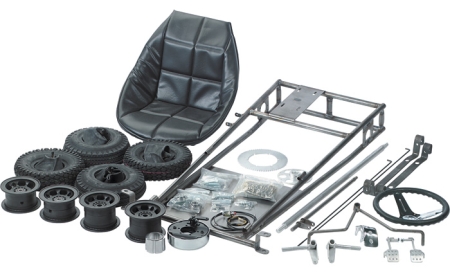

Kit Includes:
- Live Axle
- #35 Chain
- Tie Rod Kits
- Brake Rod Kit
- Front Spindles
- Steering Wheel
- Throttle Assembly
- Rear Bearing Kits
- Seat with Hardware
- Engine Kill Switch
- Steering Shaft and Hub
- #35, 72T Sprocket with Hub
- Kart Frame with Steering Hoop
- 6" Internal Expanding Drum Brakes
- Front and Rear 6" Aluminum Tristar Wheels with 15x6-6 Knobby Tires
*Engine and Clutch NOT INCLUDED*
 ***Go-Karts require an extensive amount of assembly. Typically it is recommended that you have a mechanic complete the assembly. Most Go-Karts available on our website require anywhere from 3-8 hours of shop time for assembly. Assembly generally involves, but is not limited to: installing wheels, role cage, bolting in seats, installing front/rear shocks and steering arms, installing fenders, securing rear swing arm, changing oil, adjusting carburetor and hooking up light wiring if applicable***
