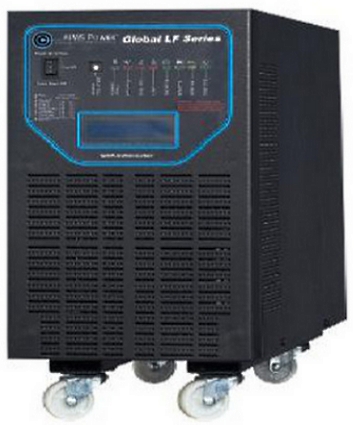

  Power 6kW Pure Sine Low Frequency Solar Inverter Charger
Power 6kW Pure Sine Low Frequency Solar Inverter Charger



Like Us On FaceBook + Google & Receive Extra Savings, Call 1-866-606-3991

Text The Word: SAFER To 555888 For Extreme Steals And Deals!

Sign Up For VIP Steals & Deals...
LIST PRICE: $2,789.95
TOMORROW'S PRICE: $2,569.95
NOV. 26th 9 HR. SALE: $2,399.95
You save $390.00!

Product Code: CBI-121100833282

Shipping

Choose Shipping Method*:

Terms & Conditions

I Agree To Terms & Cond.

Description

Power 6kW Pure Sine Low
Frequency Solar Inverter Charger




Features:
  • 6000 watt low frequency inverter 110/220Vac Split Phase
  • 18000 watt surge for 20 seconds -3x surge capability
  • Battery Priority Selector
  • GFCI
  • Marine Coated and Protected
  • Multi Stage Smart charger 90 Amp
  • MPPT solar charge controller - PV in 30-55Vdc
  • auto gen start and frequency
  • 10msec typical transfer time
  • 7 battery type settings for charger
ORDER ONLINE NOW OR
CALL 1-866-606-3991

Inverter Output Specifications:
  • Output Waveform: Pure Sine/Same as input (Bypass Mode)
  • Nominal Efficiency: >88% (Peak)
  • Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
  • THD: < 10% DC
Input Specifications:
  • Nominal Input Voltage: 24.0Vdc
  • Minimum Start Voltage: 20.0Vdc
  • Low Battery Alarm: 21.0Vdc-22.0Vdc
  • Low battery Trip: 20.0Vdc-21.0Vdc
  • High Voltage Alarm: 32.0Vdc
  • Low battery Voltage Restart: 31.0Vdc
  • Idle Consumption in Power Saver Mode: <<1 amps
ORDER ONLINE NOW OR
CALL 1-866-606-3991

Charger Specifications:
  • Output voltage: Depends on battery Type
  • Charger Rate: 90A
Solar Charge Controller Specifications:
  • Rated Voltage: 24V
  • Input Voltage Range: 30-55Vdc
  • Rated Charge Current: 60A
  • Rated Output Current: 15A
  • No Load Current: < 10mA
  • Bulk Charge: 29.0V (default)
  • Floating Charge: 27.0V (default)
  • Equalization Charge: 28.0V (default)
Dimensions:
  • Unit Weight: 108 lbs.
  • Unit Size L x W x H: 18.5 x 7.5 x 13.4 inches
  • Shipping Weight: 112 lbs.
  • Shipping L x W x H: 23.2 x 13 x 18.7 inches
