Complete 80cc Motor Bicycle
Engine Kit Z2-80BKS
 This
kit will allow you to turn your bicycle into a gasoline powered
motorbike! 1 Gallon of fuel runs 150 miles!! The engine is designed to
be pedal/chain started so you can start or stop the engine while
riding! Speeds up to 40mph. To install this kit you will need some
basic skills using tools and a few hours. Follow the user manuals
stated gas/oil mix and adjustments. This kit will fit many bikes sold in
your local bike shops!
The motor kit has
gone through at least 10 minutes factory running test for quality
assurance. This motor kit has been carefully tailored to fit in many
bikes (mountain, cruiser, chopper, road) with v-frame.
 If connect the kill-switch to the "blue/yellow to blue wire", and "Black to Black) and you can add a head light or tail light onto your bike by connecting
the 6 volt, 5w-10w bulb with white and blue color wires from the
engine so that you can ride it at night.
ORDER
ONLINE NOW
OR
CALL 866-606-3991
This motor kit is a
new generation of 2 cycle engine kit with many improvements and
enhancements which make it stronger, more powerful and more durable.
This motor kit has been carefully tailored to fit in many bikes
(mountain, cruiser, chopper, road) with v-frame.ORDER
ONLINE NOW
OR
CALL 866-606-3991
ORDER
ONLINE NOW
OR
CALL 866-606-3991- Mode of Engine: Single cylinder, Air-cooling, 2-stroke
- Power: Rotary
- Speed Rated Power: 1.5Kw / 5000r / min (3HP/5000r/min)
- Max. Power: 2Kw / 6000r / min (5-6HP/6000r/min)
- Ignition Mode: CDI
- Compression Ratio: 6:01
- Driving Ratio: 18:01
- Fuel type: No.90
- Lubrication Oil: Motorcycle Synthetic 2 Stroke Oil
- Mixing Ration for Fuel and Oil: 16:1 for break period (first 300 miles) 25-30:1 after
- Spark Plug: Z4C 14MM
- Fuel Consumption: 120-170 MPG
- Clutch Type: Friction Plate / Dry
- Speed Limitation: 25-40MPH

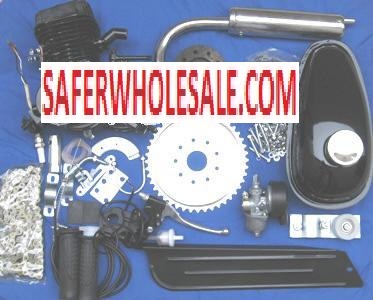

- User manual
- Black 66cc 2-cycle EPA certified needle bearing engine (big mount slant head)
- 41 tooth sprocket with mounting hardware
- Cat. converter exhaust muffler ( black)
- On/off fuel petcock

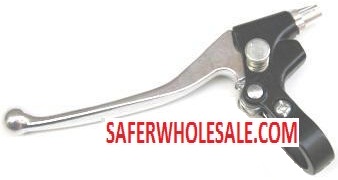

- Heavy duty push button lock style alloy clutch lever with long handle
- Heavy duty chain (#415/#50)
- Bearing adjustable chain idler
- Carburetor assembly black
- CD ignition assembly
- Update kill switch ( on throttle) unit with stop bottom (to blue wire)
- Chain guard
- Spark plug with tool

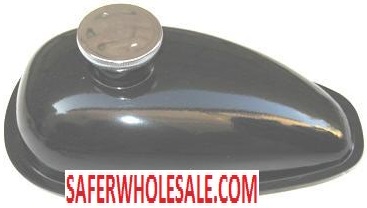

- 2 L black gas tank with mounting brackets (black)
- Bicycle frame mounting
- Other needed mounting and hardware
- Extra bigger frame adapter ( no drill hole on the bike frame needed) (U-Clamp)
- Fuel filter (limited time offer)
- 2 Pieces of rubber pads for less vibration
EPA Certified EngineORDER
