  Brand New Heavy Duty Dual-Axis Solar Tracker Kit
Brand New Heavy Duty Dual-Axis Solar Tracker Kit



Like Us On FaceBook + Google & Receive Extra Savings, Call 1-866-606-3991

Text The Word: SAFER To 555888 For Extreme Steals And Deals!

Sign Up For VIP Steals & Deals...
LIST PRICE: $499.95
TOMORROW'S PRICE: $399.95
AUG. 27th 7 HR. SALE: $324.95
You save $175.00!

Product Code: WNN-STKIT

Shipping

Choose Shipping Method*:

Terms & Conditions

I Agree To Terms & Cond.

Description

GO GREEN WITH THIS
  Brand New Heavy Duty Dual-Axis Solar Tracker Kit

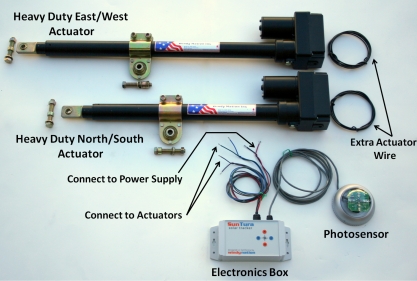

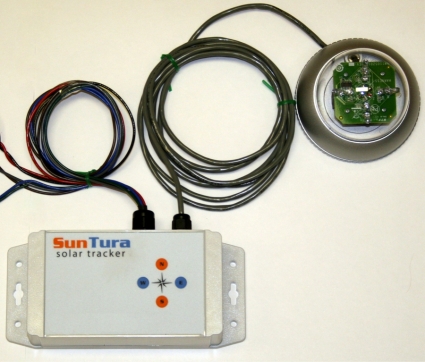

Whether you want an out-of-the-box solution or a build-it-yourself, we offer the electronics, motors and wires you need for a dual-axis solar tracker! Just select the kit you want, but the end result is always the same--a professional grade dual-axis solar tracker!

The Solar Tracker Kit comes with manual control buttons that allow the user to manually move the north/south and east/west linear actuators. This is convenient if you want to position the solar tracker to wash the solar panels, or if you want to position the solar panels for a high wind event. Dual-axis tracking provides flexibility that comes in handy in a variety of situations.

ORDER ONLINE NOW
OR CALL 1-866-606-3991

Features:
  • 100% pre-wired and 100% pre-assembled. Truly “plug and play”. Simply connect it to a power supply and it will track the sun!
  • Dual axis tracker provides up to 40% more power production than fixed solar panels
  • Engineered to hold up to 500 Watts of solar panels
  • All electronics are water-tight and sealed in IP65 rated enclosures
  • Manual controls to move the solar tracker north, south, east and west
  • Includes two 20 amp fuses (one operational fuse and one extra spare fuse)
  • Limit switches are pre-installed at the factory



ORDER ONLINE NOW
OR CALL 1-866-606-3991

Specifications:

Operating Voltage 8 to 30 VDC Works with 12 or 24 volt DC power supplies. Do NOT exceed 30 VDC.
Maximum Operating Current 14 amps continuous 16 amps intermittent The linear actuators used in this kit only draw 9 amps. The tracking electronics can handle up to 16 amps.
Corrosion Resistance Conformal coating on all circuit boards Conformal coatings are generally applied to circuit boards that are used outdoors. They protect the electronics from moisture (humidity) and corrosion.
Moisture Ingress Protection IP65 Rated Enclosures Protects electronics from moisture.
UV Protection Wire and Enclosures are UV protected Both enclosures and all cable is outdoor rated and UV resistant.
Reverse Polarity Protection Yes If positive and negative power supplies wires are accidentally connected backwards, the internal fuse on the circuit board will blow and protect the electronics.
Short Circuit Protection Yes If any of the external wires are accidentally shorted together, the internal fuse on the circuit will blow and protect the electronics.



ORDER ONLINE NOW
OR CALL 1-866-606-3991

Linear Actuators Specifications:

East/West Actuator North/South Actuator
Stroke length 12 inches 6 inches
Dynamic load 225 lbs (102 kg) 225 lbs (102 kg)
Static load 625 lbs (312 kg) 625 lbs (312 kg)

5/16 inch diameter mounting holes 5/16 inch diameter mounting holes



ORDER ONLINE NOW
OR CALL 1-866-606-3991
