Solar Full Kit Swing Gate Opener for Single Swing Gates Up to 6-Feet Long and 450-Pounds
This Single Swing Gate Operator is designed for residential/commercial applications. Stay warm and dry in your vehicle. This Single Swing Opener will handle dual swinging gates up to 6 ft in length and weighing up to 450 lb. This Single Swing Gate Operator has powerful 24VDC motor, which provide exceptional starting torque and feature soft start/stop operation. This promotes longer gate and operator life, as well as dependable performance.
No power? No problem!
Optional Built-in battery backup provides seamless operation of the gate operator and all DC control and sensing devices in the event of a power loss. To simplify installation, this Single Swing Gate Operator may be installed with low-cost, low-voltage wiring or in remote locations using our optional 10W and/or 20W Solar Panel.
ORDER ONLINE NOW OR
ORDER ONLINE NOW ORFeatures:
- Open and close the gate by remote control or keypad
- Soft start, Soft stop
- Emergency Release key in case of power failure
- Dual/Single gate running mode
- Optional master and slave gate running
- Adjustable opening/closing interval between master and slave gate
- Stop/Reverse in case of obstruction during gate opening/closing.
- The force of the motor can be programmed
- Optional photocell protection (not included)
- Built in adjustable auto-close (programmable from 0-99 sec)
- Digital display indicates the running situation and setting menu
- Reliable electromagnetic limit switches improve adjustment of the 'open' and 'close' position
ORDER ONLINE NOW OR

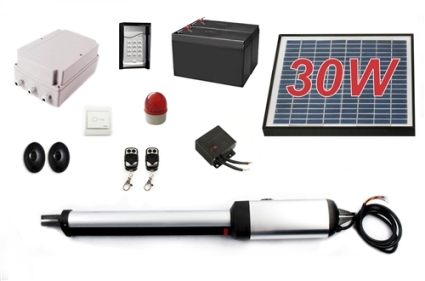

- 1 (One) Actuator
- 1 Control Box
- 2 Remote Controls (433MHz)
- 1 Wireless Keypad
- 1 Push button
- 1 Set of Photocell
- 1 Solar Panel 10W 24V
- 1 Solar Panel 20W 24V
- 1 Charge Controller 24V
- 2 x 12V 12AH batteries
- 1 Battery Box
- 1 Set of Mounting Brackets and Hardware for one actuator
- 1 8 1/2" x 11” Warning Signs
- 1 Installation and Operating Manual
- Wires ARE NOT INCLUDED
- Motor: 24V DC, 50W per actuator, 2A current
- Power supply: 110V/60Hz (220V/50Hz not included)
- Actuator speed: 1.6 cm/second (5/8 inch/second)
- Actuator travel: 385mm (15 3/4”) Max.
- Weight of each gate panel: 300 kg (650 lbs) Max.
- Width of each gate panel: 3 m (10ft)
- Auto-closing duration: programmable (from 0 to 99 seconds)
- Ambient temperature: -22C(-4F) ~ +55C(+122F)
