Basic Kit Swing Gate Opener for Dual Swing Gates Up to 16-Feet Long and 1300-Pounds
This Dual Swing Gate Operator is designed for residential/commercial applications. Stay warm and dry in your vehicle. This Dual Swing Opener will handle dual swinging gates up to 16 ft in length and weighing up to 1300 lb (12 ft and 650 lb per panel). This Dual Swing Opener has powerful 24VDC motors, which provide exceptional starting torque and feature soft start/stop operation. This promotes longer gate and operator life, as well as dependable performance.
No power? No problem!
Optional Built-in battery backup provides seamless operation of the gate operator and all DC control and sensing devices in the event of a power loss. To simplify installation, this Swing Gate Operator may be installed with low-cost, low-voltage wiring or in remote locations using our optional 10W and/or 20W Solar Panel.
ORDER ONLINE NOW OR
ORDER ONLINE NOW ORFeatures:
- Open and close the gate by remote control or keypad
- Soft start, Soft stop
- Emergency Release key in case of power failure
- Dual/Single gate running mode
- Optional master and slave gate running
- Adjustable opening/closing interval between master and slave gate
- Stop/Reverse in case of obstruction during gate opening/closing.
- The force of the motor can be programmed
- Optional photocell protection (not included)
- Built in adjustable auto-close (programmable from 0-99 sec)
- Digital display indicates the running situation and setting menu
- Reliable electromagnetic limit switches improve adjustment of the 'open' and 'close' position
ORDER ONLINE NOW OR

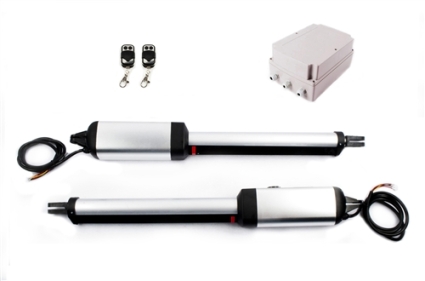

- 1 (One) Actuator
- 1 Control Box
- 2 Remote Controls (433MHz)
- 1 Wireless Keypad
- 1 Push button
- 1 Set of Photocell
- 1 Set of Mounting Brackets and Hardware for one actuator
- 1 8 1/2" x 11” Warning Signs
- 1 Installation and Operating Manual
- Wires ARE NOT INCLUDED
Motor:24 V DC, 80W per actuator, 3A current
- Power supply: 110V/60Hz (220V/50Hz not included)
- Actuator speed: 1.6 cm/second (5/8 inch/second)
- Actuator travel: 385mm (15 3/4”) Max.
- Weight of each gate panel: 300 kg (650 lbs) Max.
- Width of each gate panel: 3 m (10ft)
- Auto-closing duration: programmable (from 0 to 99 seconds)
- Ambient temperature: -22C(-4F) ~ +55C(+122F)
