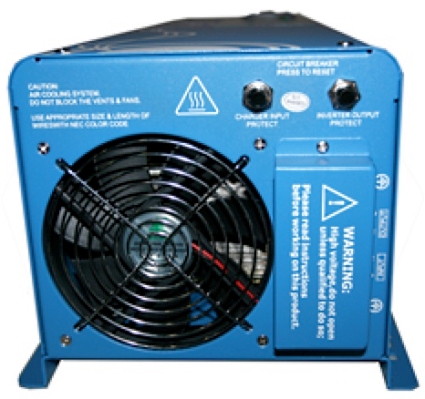

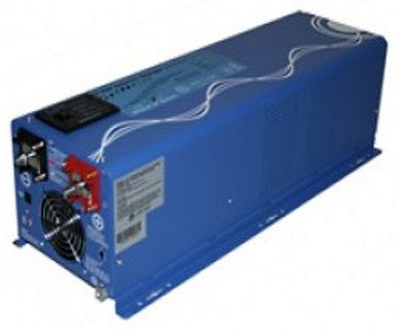

  AIMS Power 4000W Pure Sine Inverter Charger Transfer Switch
AIMS Power 4000W Pure Sine Inverter Charger Transfer Switch



Like Us On FaceBook + Google & Receive Extra Savings, Call 1-866-606-3991

Text The Word: SAFER To 555888 For Extreme Steals And Deals!

Sign Up For VIP Steals & Deals...
LIST PRICE: $2,199.95
TOMORROW'S PRICE: $1,979.95
AUG. 28th 9 HR. SALE: $1,798.95
You save $401.00!

Product Code: CBI-PICOGLF40W12V230V

Shipping

Choose Shipping Method*:

Terms & Conditions

I Agree To Terms & Cond.

Description

AIMS Power 4000W Pure Sine
Inverter Charger Transfer Switch




The AIMS Power 4000W Pure Sine Inverter Charger Transfer Switch is the ideal choice for anyone who needs power. The 4000 Watt power inverter is Marine coated and protected and has continuous output power, giving you everything that you need in power inversion and more.

ORDER ONLINE NOW OR
CALL 1-866-606-3991



Features:
  • 4000 watt low frequency inverter
  • 12000 watt surge for 20 seconds 300% surge capability
  • 220/240 Vac output
  • Battery Priority Selector
  • Terminal Block
  • GFCI outlet
  • Marine Coated and Protected
  • Multi Stage Smart charger 40 Amp
  • remote panel available
  • auto frequency
  • 10msec typical transfer time
  • optional 25W power save mode
  • 7 battery type settings for charger
Output Specifications:
  • Continuous Output Power: 4000 Watts
  • Surge Rating: 12000 Watts (20 Seconds)
  • Output 220 Vac 50hz or 60hz
  • Output Waveform: Pure Sine/Same as input (Bypass Mode)
  • Nominal Efficiency: >88% (Peak)
  • Line Mode Efficiency: >95%
  • Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
  • Typical Transfer Time: 10ms (Max)
  • THD: < 10% DC
Input Specifications:
  • Nominal Input Voltage: 12.0Vdc
  • Minimum Start Voltage: 10.0Vdc
  • Low Battery Alarm: 10.5Vdc-11.0Vdc
  • Low battery Trip: 10.0Vdc-10.5Vdc
  • High Voltage Alarm: 16.0Vdc
  • Low battery Voltage Restart: 15.5Vdc
  • Idle Consumption: <3.47 amps DC
  • Power Saver Mode Idle Consumption: <0.53 amps DC

Charger Specifications:

  • Output voltage: Depends on battery Type
  • Charger Rate: 100A
  • Over Charge Protection Shutdown 15.7V
  • Selectable Charge setting based on battery type
  • Adjustable charge current off-20%-100%
  • Four Stage Smart Charger

Transfer Switch Specifications:

  • 40 amp automatic transfer switch
  • 10 ms (max)
