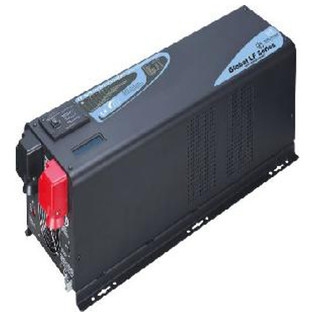

  AIMS Power 3kW Pure Sine Low Frequency Solar Inverter Charger
AIMS Power 3kW Pure Sine Low Frequency Solar Inverter Charger



Like Us On FaceBook + Google & Receive Extra Savings, Call 1-866-606-3991

Text The Word: SAFER To 555888 For Extreme Steals And Deals!

Sign Up For VIP Steals & Deals...
LIST PRICE: $1,899.95
TOMORROW'S PRICE: $1,669.95
4/16/14 SIX HOUR SALE: $1,438.95
You save $461.00!

Product Code: CBI-PICGLF30W12V120V

Shipping

Choose Shipping Method*:

Terms & Conditions

I Agree To Terms & Cond.

Description

AIMS Power 3kW Pure Sine Low
Frequency Solar Inverter Charger




Power inverters have become a staple in businesses and homes around the world due to intermittent brown and black-outs. AIMS Pure Sine Wave Power Inverters provide reliable transformation of DC power from a battery (such as the one in a car or RV) into AC power that can then be used to run lights computers printers televisions medical equipment* and a broad range of appliances. And when it comes to selecting an inverter itís helpful to know that AIMS Pure Sine Wave inverters represent the most technologically advanced lightweight compact and diverse inverters on the market to help ensure the widest use of applications. For over a decade the AIMSí Power Pure Sine Wave Power Inverters has consistently delivered the broadest range of sizes to accommodate virtually every power requirement.

ORDER ONLINE NOW OR
CALL 1-866-606-3991

Features:
  • 3000 watt low frequency inverter
  • 9000 watt surge for 20 seconds -3x surge capability
  • Battery Priority Selector
  • GFCI
  • Marine Coated/Protected
  • Multi Stage Smart charger 65 Amp
  • MPPT solar charge controller - PV in 15-30Vdc
  • Auto gen start and frequency
Output Specifications:
  • Output Waveform: Pure Sine/Same as input (Bypass Mode)
  • Nominal Efficiency: >88% (Peak)
  • Line Mode Efficiency: >95%
  • Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
  • Typical Transfer Time: 10ms (Max)
  • THD: < 10% DC
Input Specifications:
  • Nominal Input Voltage: 12.0Vdc
  • Minimum Start Voltage: 10.0Vdc
  • Low Battery Alarm: 10.5Vdc-11.0Vdc
  • Low battery Trip: 10.0Vdc-10.5Vdc
  • High Voltage Alarm: 16.0Vdc
  • Low battery Voltage Restart: 15.5Vdc
  • Idle Consumption: <10 amps AC
  • Power Saver Mode Idle Consumption: <1 amps AC
Charger Specifications:
  • Output voltage: Depends on battery Type
  • Charger Rate: 65A
Solar Charge Controller Specifications
  • Rated Voltage: 12V
  • Input Voltage Range: 15-30Vdc
  • Rated Charge Current: 60A
  • Max DC Load: 15A
  • No Load Current: < 10mA
  • Bulk Charge: 14.5V (default)
  • Floating Charge: 13.5V (default)
  • Equalization Charge: 14.0V (default)
Dimensions:
  • Unit Weight: 49 lbs.
  • Unit Size: 23.54 x 8.59 x 7.05 inches
  • Shipping Weight: 53 lbs.
  • Shipping: 29.13 x 12.40 x 11.81 inches
